 Capacitor transformer prototype, am i right?
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

Lykenth
New Member


United Kingdom
45 Posts

Posted - March 07 2012 :  17:46:34  Show Profile  Visit Lykenth's Homepage Send Lykenth a Private Message  Reply with Quote
Hello all,
Is this correct at all?, I dont have the parts to build such a thing but id like to see if it works. an for me, it shows i am learning about planing ahead an not doing lots of things but then going... How did i do that! lol

No there are no values in this - thats because i have not figured them out just yet.
I found that series charging caps has less an impact on my generator an it recovers faster than if the caps where in parallel or a high uF. So i want to capture the HV in low uF caps then parallel the combined uF for a larger current an lower voltage.
Most i can say for the input is its around 240v at 300-500 mA from the AC side. An no this is not British house mains - just happen to be producing it to my surprise an painful experience.



Lykenth

Google AdSense

USA
Mountain View


Poppy
Average Member



USA
418 Posts

Posted - March 07 2012 :  23:51:36  Show Profile Send Poppy a Private Message  Reply with Quote
Hi Lykenth...

Try This!



Go to Top of Page

kcarring
Moderator



Canada
1057 Posts

Posted - March 08 2012 :  04:40:06  Show Profile Send kcarring a Private Message  Reply with Quote
This is a good read, too:

You must be logged in to see this link.

~~~~~~~~~~~~~
You wouldn't laugh at my igloo if you knew how cold my beer is!
Go to Top of Page

Lykenth
New Member



United Kingdom
45 Posts

Posted - March 08 2012 :  07:00:32  Show Profile  Visit Lykenth's Homepage Send Lykenth a Private Message  Reply with Quote
[quote]Originally posted by Poppy

Hi Lykenth...

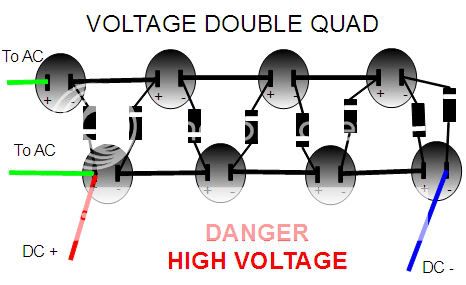

Try This!



Can i put this into reverse? i want lower voltage higher current out - not volts doubled. ^_^
Go to Top of Page

Lykenth
New Member



United Kingdom
45 Posts

Posted - March 08 2012 :  07:08:09  Show Profile  Visit Lykenth's Homepage Send Lykenth a Private Message  Reply with Quote
[quote]Originally posted by kcarring

This is a good read, too:

You must be logged in to see this link.

This is exactly the ifno im after - thank you Kcarring - i first saw this on youtube an have sent the links to TM for his HHO project.
Go to Top of Page

kcarring
Moderator



Canada
1057 Posts

Posted - March 08 2012 :  13:19:16  Show Profile Send kcarring a Private Message  Reply with Quote
@Lykenth

George has some cool stuff going on. He lives about 10 km from me. He powers all of his electrolysers this way. By adding the series cap, with the parallel cap, you set the output and thus take away runaway voltage / short to mains (as I understand it).

You can see George's water torch uses it, in this pic:
You must be logged in to see this link.

I have personally used his torch cutting steel, a commercial sized unit. Very impressive, probably the world's most serious Brown's gas machine. I was easily able to cut through 1/2" solid steel deck bridge (tressle) beams with his unit, and it does not produce the toxic black smoke associated with large oxyacetylene. We operated them on 20 kilowatt diesel generators while dismantling original WWII bridges near Vancouver BC.

Cheers

~~~~~~~~~~~~~
You wouldn't laugh at my igloo if you knew how cold my beer is!

Edited by - kcarring on March 08 2012 13:22:26
Go to Top of Page

TinMan
Advanced Member



4082 Posts

Posted - March 12 2012 :  04:58:48  Show Profile Send TinMan a Private Message  Reply with Quote
Hi Lykenth
I am also looking for a high current stepdown transformer made with caps.The top scematic you show-have you tried it out?
I am not haveing much luck finding such a device that converts voltage to current useing caps


swim at 90 degrees to the current and gain speed in two directions

skype-thetinman.69
Go to Top of Page

TinMan
Advanced Member



4082 Posts

Posted - March 12 2012 :  05:02:34  Show Profile Send TinMan a Private Message  Reply with Quote
Hmm -looking at your scematic again i see you have a dead short at the end of the cap bank,--the bridge from negative to positive.


swim at 90 degrees to the current and gain speed in two directions

skype-thetinman.69
Go to Top of Page

TinMan
Advanced Member



4082 Posts

Posted - March 15 2012 :  07:33:06  Show Profile Send TinMan a Private Message  Reply with Quote
Hi Lykenth
Keep this thread going mate as i think this would hold a lot of interest-i am looking for this sort of a setup.


swim at 90 degrees to the current and gain speed in two directions

skype-thetinman.69
Go to Top of Page

TinMan
Advanced Member



4082 Posts

Posted - March 18 2012 :  09:12:36  Show Profile Send TinMan a Private Message  Reply with Quote
Mmmm waiting waiting waiting lol---scematic??


swim at 90 degrees to the current and gain speed in two directions

skype-thetinman.69
Go to Top of Page

49er
Administrator



USA
4426 Posts

Posted - March 18 2012 :  12:07:17  Show Profile Send 49er a Private Message  Reply with Quote
Mmmmm you seam to be talking to your self. TM

Doug
The sky is not the limit...There are footprints on the MOON.
Your only as DUMB as where your standing.
No matter where you go there you are.
You must be logged in to see this link.
SKYPE bxx49er
Go to Top of Page

Lykenth
New Member



United Kingdom
45 Posts

Posted - March 29 2012 :  12:55:08  Show Profile  Visit Lykenth's Homepage Send Lykenth a Private Message  Reply with Quote
Sorry for that i have been messing with another version of this - the C.V.D.R.T - its in development as per usual. but know this - i have found that if you put high voltage into a very high uF bank of caps, its not bothered by the high voltage seemingly. an you get a high current output from the caps.

that odd wire that seems like a short - its not its just the caps in series.
Go to Top of Page
